BV Series

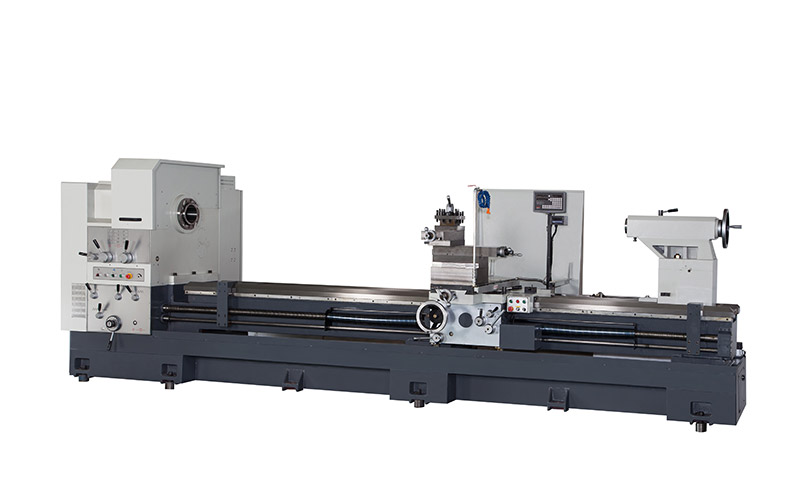

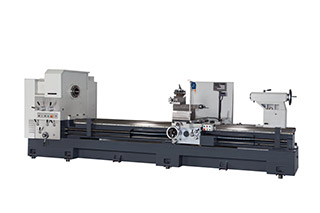

BV-48160
- SPECIFICATIONS
Conventional Lathe BV 32 40 48 SERIES
| Model | BV-32 | BV-40 | BV-48 | |
|---|---|---|---|---|
| Capacity | ||||
| Swing over bedmm | 800(31.5") | 1000(39.37") | 1200(47.24") | |
| Swing over cross slidemm | 510(20.47") | 710(28.35") | 910(36.22") | |
| Swing over gapmm | 1080(42.52") | 1280(50.39") | 1480(58.27") | |
| Gap widthmm | 450(17.72") | |||
| Center heightmm | 400(15.75") | 500(19.69") | 600(23.62") | |
| Distance between centersmm | 1200(47"), 2200(87"), 3200(126"), 4000(158"), 5000(197"), 6000(236") | |||
| Bed width | 560(22") (3V + 1 flat) | |||
| Cross slide width | 350(13.78") | |||
| Headstock | ||||
| Spindle bore/nosemm | 155(6")(A2-11)/*250(10")(A2-15)/*305(12")(A2-20)/*380(15")(A2-20) | |||
| Spindle speed rangerpm | 6-800/4-600/4-400/4-300 | |||
| Spindle speed steps | 4 steps (variable speed) | |||
| Main motorhp | 30 (inverter 30)/*40 (inverter 40) | |||
| Carriage & Apron | ||||
| Cross slide travelmm | 550(21.65") | |||
| Compound slide travelmm | 225(8.86") | |||
| Tailstock | ||||
| Diameter of quillmm | 125(4.92") / *165(6.5") rotating tailstock | |||
| Travel of quill mm | 250(9.84") | |||
| Center | M.T.#6 | |||
| 4 way tool shankmm | 40(1.58") | |||
| Threading / Feeding | ||||
| Diameter of leadscrewmm | Φ 60(2.36") x 2T.P.I. or P=12 | |||
| Metric threads mm | 0.8~14 | |||
| Inch threads inch | 2~28(36 kinds) | |||
| Module threads | 0.4~7 | |||
| DP threads | 4~56(36 kinds) | |||
| Longitudinal feeds mm | 0.05~0.84(0.002"~0.033") | |||
| Weight | ||||
| Net / Gross kgs(lb) | 7400(16280) / 7900 (17380) |
8200(18040) / 8800 (19360) |
9000(19800)/ 9700 (21340) |
9800(21560)/ 10600 (23320) |
| Dimensions | ||||
| Floor size LxWxH mm | 4060(160")x1950(77") x 1750(69") |
5060(199")x1950(77") x 1750(69") |
6060(239")x1950(77") x 1750(69") |
7060(278")x1950(77") x 1750(69") |
| Packing size LxWxHmm | 4300(169")x1950(77") x1950(77") |
5300(209")x1950(77") x1950(77") |
6300(248")x1950(77") x1950(77") |
7300(287")x1950(77") x1950(77") |
*is option
