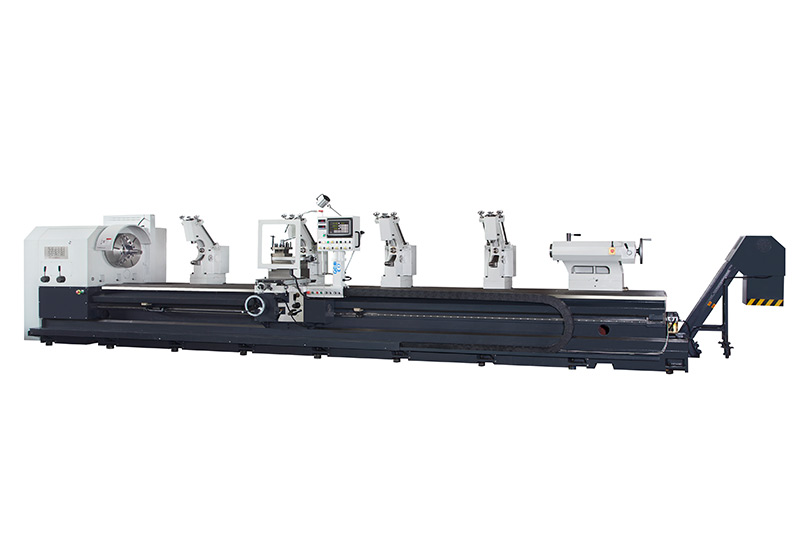

GHV Series
GHV-35 Series
- SPECIFICATIONS
Conventional Lathe GHV SERIES SPECS
| GHV | 3580 | 35120 | 35160 | 35200 | 35240 |
|---|---|---|---|---|---|
| CAPACITIES | |||||
| Swing over bed | 900mm(35") | ||||
| Swing over carirage | 750mm | ||||
| Distance between center | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
| HEADSTOCK | |||||
| Spindle bore | 155mm ( A2-11)/250mm(A2-15)/305mm380mm(A2-)20 | ||||
| Spindle speed range | 155mm 4-800rpm/250mm305mm380mm4-400rpm | ||||
| Spindle speed steps | 4 steps | ||||
| Main motor | 30HP with invertor | ||||
| Longitudinal feeds | 0.04mm/rev | … 1.0mm/rev | |||
| Longitudinal rapid | 0.02mm/rev….0.5mm/rev | ||||
| CARRIAGE & APRON | |||||
| Width of carriage | 900mm | ||||
| Width of cross slide | 350mm | ||||
| Cross slide travel | 390mm | ||||
| Compound slide travel | 220mm | ||||
| Tool post | 180mm | ||||
| Feed motor | 3HP with invertor | ||||
| Tailstock | |||||
| Diameter of quill | 165mm | ||||
| Travel of quill | 250mm | ||||
| Center | M.T. #6 | ||||
| Bed width | 900mm(35.4") | ||||
| Net weight | 5500kgs | 6500kgs | 7500kgs | 8500kgs | 9500kgs |
| Packing size W: 2200mm H: 2200mm | L:4700mm | L:5700mm | L:6700mm | L:7700mm | L:8700mm |
*is option
