BN Series
-

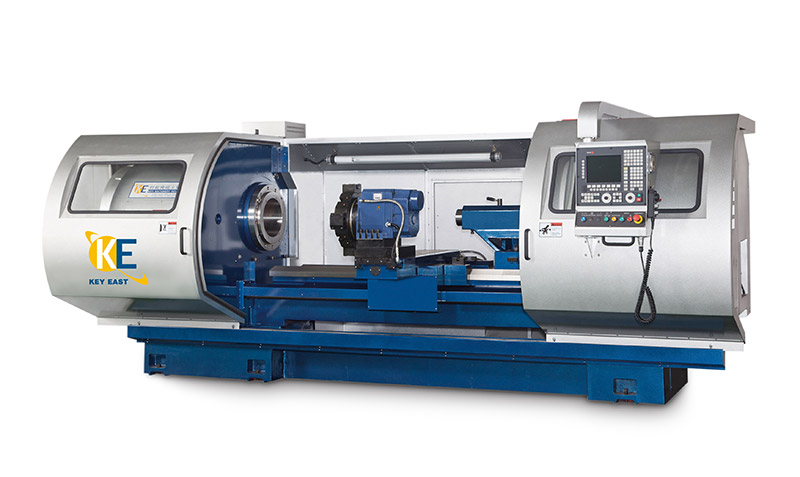

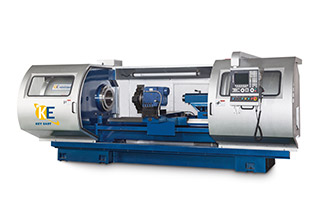

BN-3280
-

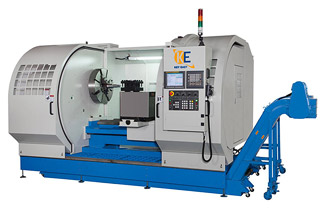

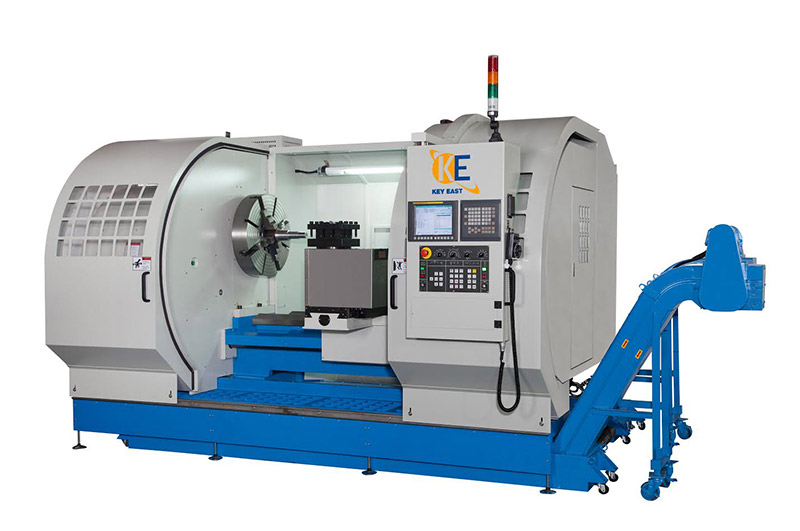

BN-4848
-

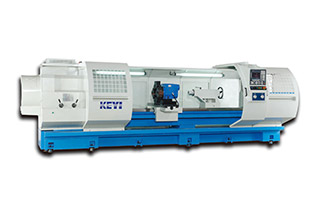

BN-32160
-

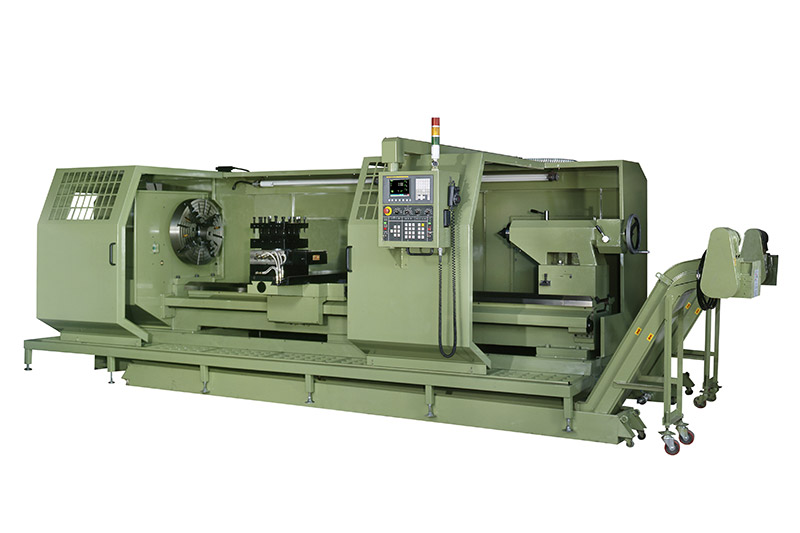

BN-40120
- SPECIFICATIONS
- ACCESSORIES
BN SERIES
| Model | unit | BN-32 | BN-40 | BN-48 | ||||
|---|---|---|---|---|---|---|---|---|
| Capacity | Center height | mm(inch) | 400(15.75") | *500(19.68") | *600(23.62") | |||
| Distance between centers | mm(inch) | 2200(86"), 3200(126"), 4200(165"), 5200(205") | ||||||
| Swing over bed | mm(inch) | 800(31.5") | 1000(39") | 1200(47") | ||||
| Swing over gap | mm(inch) | 1080(42.52") | 1280(50.4") | 1480(58.3") | ||||
| Swing over cross slide | mm(inch) | 510(20") | 710(28") | *910(36") | ||||
| Width of bed | mm(inch) | 560(22") | ||||||
| Bed way | 3V + I Flat Way | |||||||
| Cross slide width | mm(inch) | 300(12") | ||||||
| Gap width | mm(inch) | *600(24") | ||||||
| Headstock & main spindle | Spindle bore / nose | mm(inch) | 155(6")A2-11 / *250(10")A2-15 / *305(12")A2-20 / *380(15")A2-20 | |||||
| Spindle speed | rpm | 6" bore (6-800 rpm) / *10" bore (4-600rpm) / *12" bore (4-400 rpm) / *15" bore (4-300 rpm) (auto 4 steps) |
||||||
| Cross slide (X-axis) & Carriage (Z-axis) |
Cross slide travel (X-axis) | mm(inch) | 550(22") | |||||
| Longitudinal travel (Z-axis) | mm(inch) | 2000(80"), 3000(120"), 4000(160"), 5000(200") | ||||||
| AC servo motor (X-axis) | kw | 3 Fanuc / 3.3 Simens / 14.8 Nm Fagor | ||||||
| AC servo motor (Z-axis) | kw | 4 Fanuc / 4.4 Simens / 27.3 Nm Fagor | ||||||
| Dia of ball screw (X-axis) | mm | Φ40 x P5 x C3 | ||||||
| Dia of ball screw (Z-axis) | mm | Φ63 x P10 x C5 /*Φ80 x P12 x C5 (6000, 7000, 8000) | ||||||
| Rapid traverse speed (X-axis) | mm/min | 6000 | ||||||
| Rapid traverse speed (Z-axis) | mm/mm | 8000 | ||||||
| Tailstock | Quill taper | MT #6 | ||||||
| Quill diameter | mm(inch) | Ø 125(5") / *rotation 165 (6.5”) | ||||||
| Quill travel | mm(inch) | 275(11") | ||||||
| Turret / toolpost | Tool station | *horizontal type 4T / *horizontal type 6T |
*vertical type 8T / *vertical type 10T |
|||||
| Size of external turning tool | mm | 32 | ||||||
| Motor | Main spindle | kw | 22 / *30 [*30hp(30hp inverter) / *40hp(40hp inverter)] | |||||
| Headstock lube pump | hp | 1 / 4 | ||||||
| Headstock speed auto change x 2 | w | 60 | ||||||
| Lube system pump | w | 22 | ||||||
| Hydraulic oil pump | hp | 2 | ||||||
| Coolant pump | hp | 1/2 | ||||||
| Accuracy | Positioning | mm | +0.01 / 300 | |||||
| Repeatability | mm | +0.005 | ||||||
| Spindle run-out | mm | +0.01 | ||||||
| Tank Capacity | Hydraulic tank | l | 80 | |||||
| Coolant tank | l | 203, 275, 332, 390 | ||||||
| Controller | Controller | brand | Simens / Fagor / Fanuc / Mitsubishi | |||||
| Controllable | axis | 2 | ||||||
| Weight | Net / Gross | kg (lb) | 7200(15840)/ 7700(16940) |
8000(17600)/ 8600(18920) |
8800(19360)/ 9500(20900) |
9600(21120)/ 10400(22880) |
||
| Dimensions | Floor space (full guard) L x W x H |
mm (inch) | 4350 x 2350 x 2000 (175"x93"x79") |
5350 x 2350 x 2000 (136"x93"x79") |
6350 x 2350 x 2000 (246"x93"x79") |
7350 x 2350 x2 000 (285"x93"x79") |
||
| Packing Size (full guard) L x W x H |
mm (inch) | 4550 x 2200 x 2200 (189"x87"x87") |
5550 x 2200 x 2200 (228"x87"x87") |
6550 x 2200 x 2200 (268"x87"x87") |
7550 x 2200 x 2200 (307"x87"x87") |
|||
* is option.
*distance between centers 6000 7000 8000 are available.
